Fully Automatic Liquid Filling Machine

Applications

Suitable for filling various liquid products such as water, juice, edible oil, sauces, detergents, disinfectants, cosmetics, and other non-carbonated liquids. The machine is compatible with different bottle shapes and container sizes, making it widely used in food, beverage, pharmaceutical, cosmetic, and daily chemical industries. It is especially suitable for high-efficiency automatic production lines requiring accurate and stable liquid filling.

Features

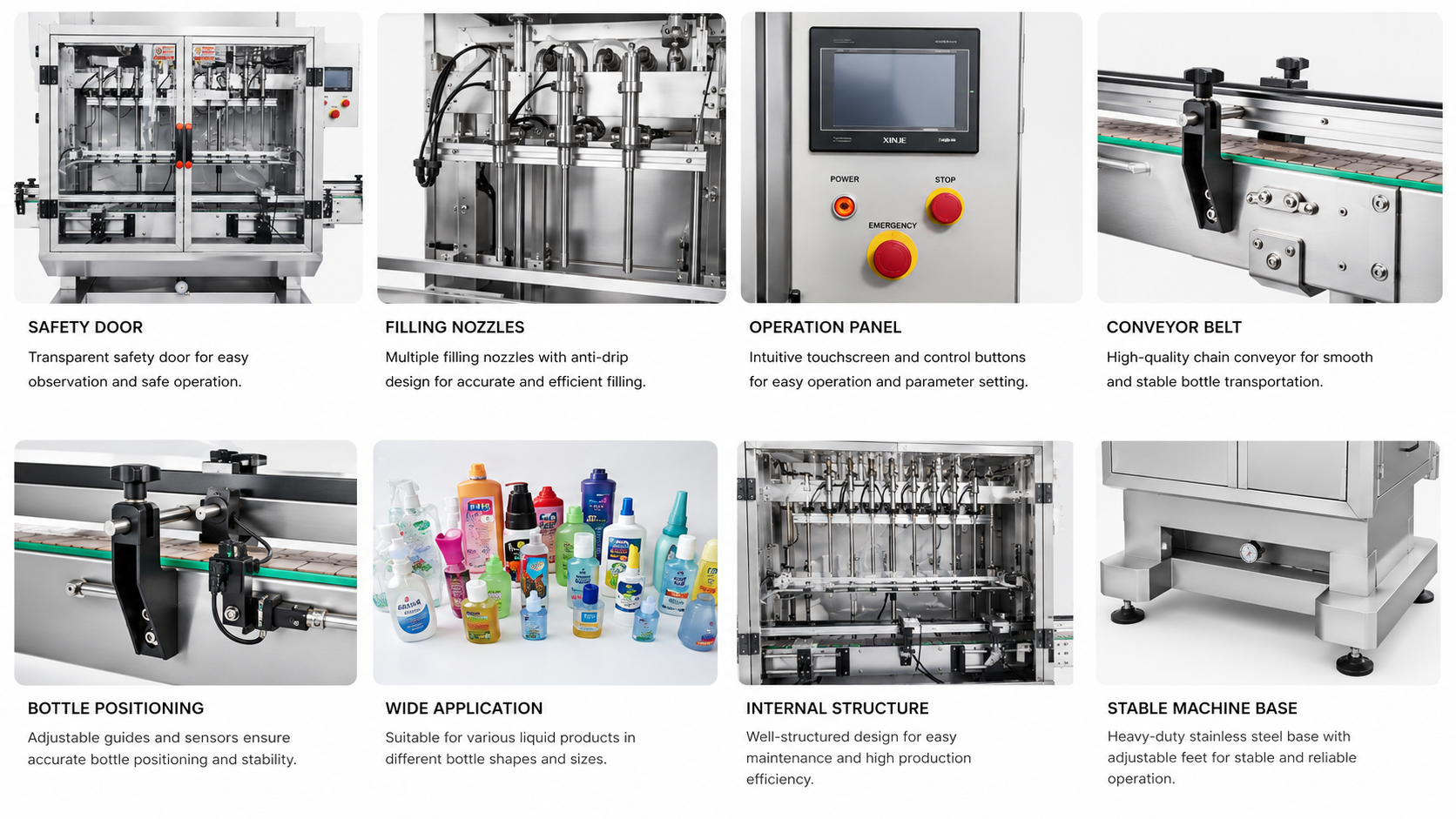

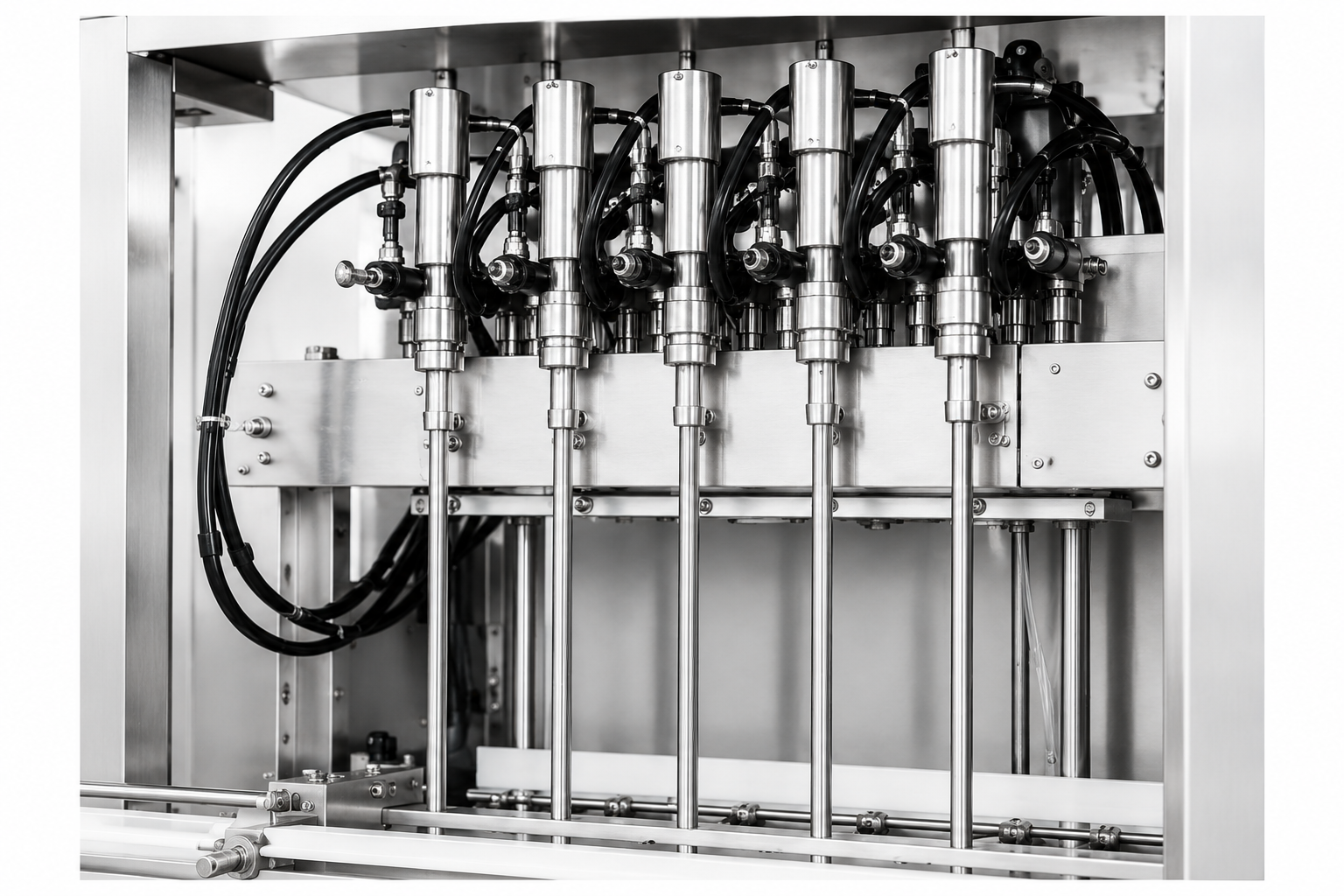

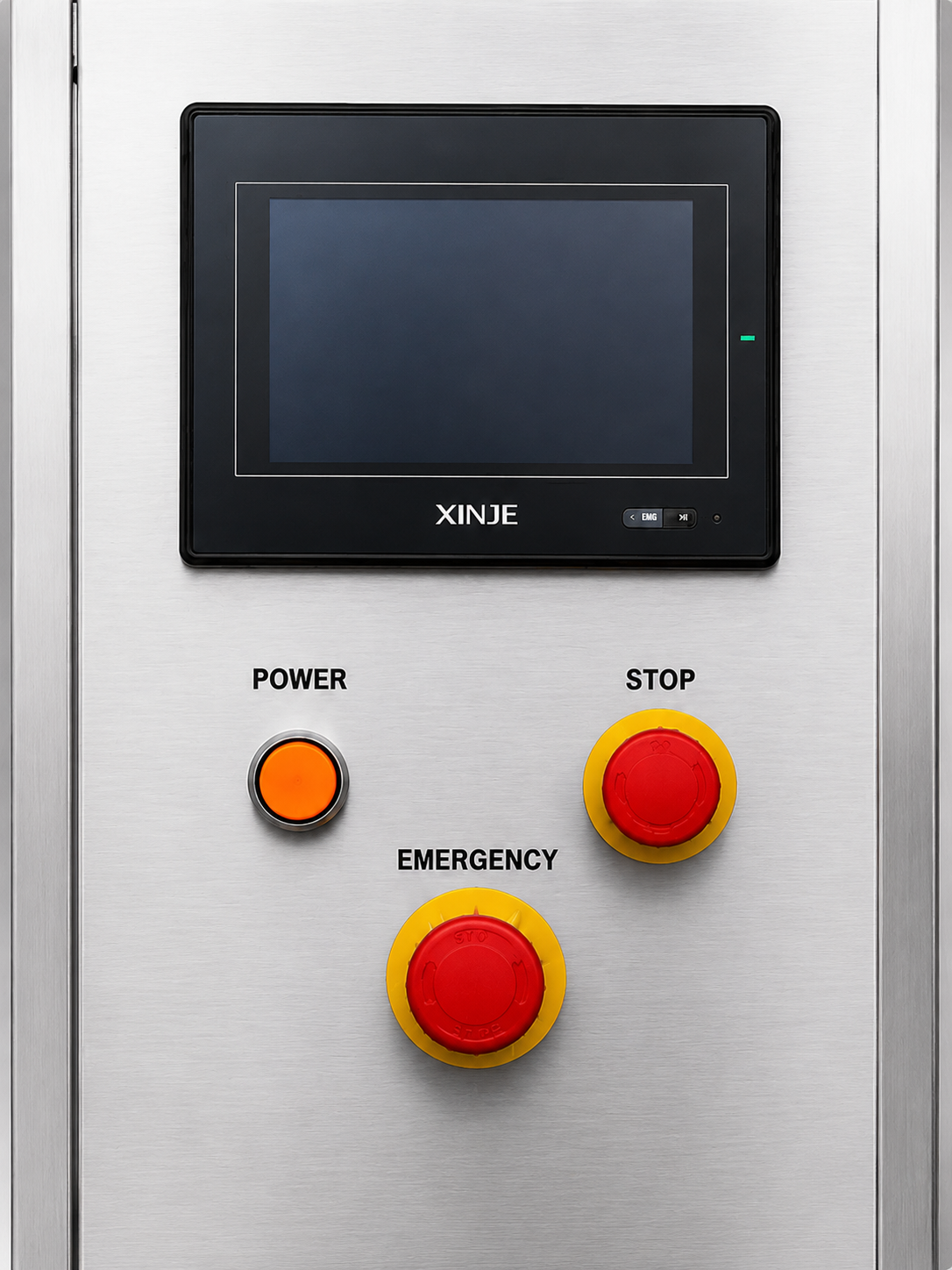

Equipped with a PLC control system and touchscreen HMI for easy operation and parameter adjustment. The machine features high filling accuracy, anti-drip filling nozzles, automatic bottle detection, and stable filling performance. Filling heads can be adjusted individually to ensure consistent filling volume. Made of SUS304/316 stainless steel, it is corrosion-resistant, hygienic, and easy to clean. The equipment supports fast changeover between different bottle specifications without replacing spare parts, improving production flexibility and efficiency.

Applications

Model

Filling Range

Filling Speed

Filling Accuracy

Power / Voltage

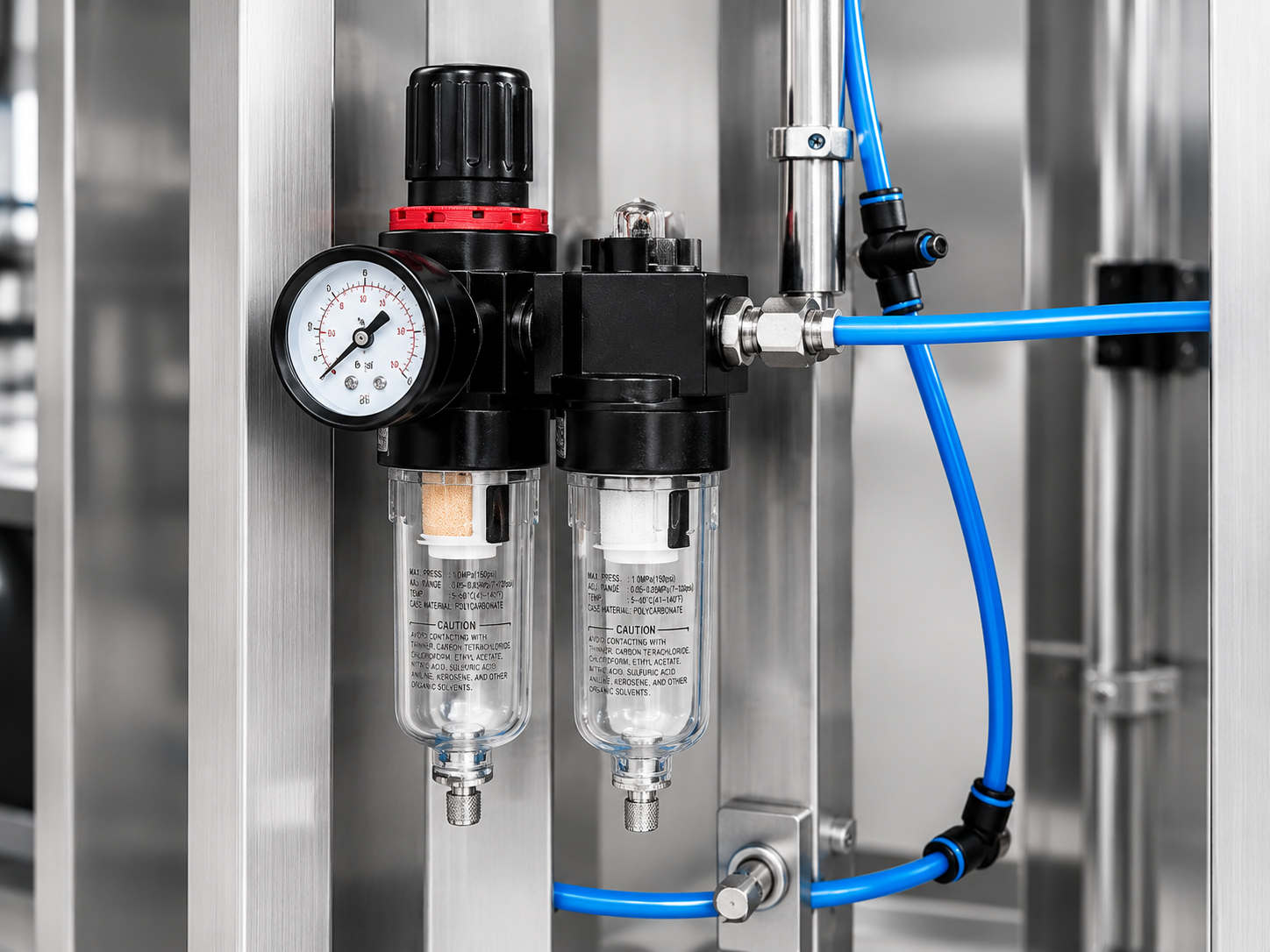

Working Air Pressure

RF-GZL-6L

50–1000 ml

30–40 bottles/min (based on 500 ml filling)

±1%

1 kW, 220 V

6–7 kg/cm²

RF-GZL-8L

50–1000 ml

30–40 bottles/min (based on 500 ml filling)

±1%

1.2 kW, 220 V

6–7 kg/cm²

RF-GZL-10L

50–1000 ml

30–40 bottles/min (based on 500 ml filling)

±1%

1.2 kW, 220 V

6–7 kg/cm²

RF-GZL-12L

50–1000 ml

60–80 bottles/min (based on 500 ml filling)

±1%

1.5 kW, 220 V

6–7 kg/cm²

ABOUT INTECPAK

Intecpak Machinery Technology Co., Ltd. is a professional machinery manufacturing enterprise integrating technology research and development, production, sales, and service. We specialize in the manufacturing and sales of food filling and packaging machinery, providing complete solutions for liquid, paste, sauce, and beverage filling applications. Our services include process design, equipment manufacturing, installation, commissioning, technical training, and after-sales support for turnkey food filling production lines..

Our main products include pouch filling machines, bottle filling machines, cup filling and sealing machines, rotary filling machines, capping machines, labeling machines, mixing tanks, sterilization equipment, and conveying systems. These machines are widely used in the food and beverage industries for filling products such as sauces, jam, honey, syrup, milk, juice, yogurt, protein drinks, tea beverages, and other liquid or semi-liquid products.

The company takes excellent product quality as its core and customer satisfaction as its goal. By continuously absorbing advanced domestic and international technologies and combining them with our own innovation capabilities, we constantly improve and optimize our equipment. Adhering to the business philosophy of “Customer First, Quality First,” we are committed to providing customers with high-quality filling machinery and professional services.
